Command/startformula

Unofficial ConTeXt Wiki mirror

Last modified: 2024-07-31

Summary

The environment \startformula ... \stopformula is used for displayed mathematical material

Settings

\startformula[...,...] ... \stopformula
[...,...] packed tight middle frame depth line halfline -line -halfline inherits from \setupbodyfont

Settings assignment

\startformula[...=...,...] ... \stopformula
option packed tight middle frame depth line halfline -line -halfline see \setupbodyfont
margin yes no standard dimension
grid see \snaptogrid

Description

The contents of this environment are typeset in mathematical mode. The environment as a whole can also be used as an argument of and immediately preceding \placeformula , in which case the typeset result can be numbered and referenced.

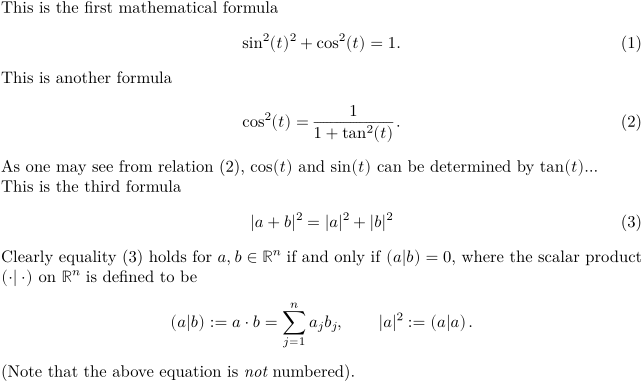

Examples

Example 1

  •
    This is the first mathematical formula
     \placeformula[First]
     \startformula
       \sin^2(t)^2 + \cos^2(t) = 1.
     \stopformula

    This is another formula
     \placeformula[eqn:tangent]
     \startformula
       \cos^2(t) = \frac{1}{1+\tan^2(t)}.
     \stopformula
    As one may see from relation~(\in[eqn:tangent]), $\cos(t)$ and
    $\sin(t)$ can be determined by $\tan(t)$\dots

    This is the third formula
     \placeformula[Pythagora]
     \startformula
        |a+b|^2 = |a|^2 + |b|^2
     \stopformula
    Clearly equality (\in[Pythagora]) holds for $a,b \in {\Bbb R}^n$
    if and only if $(a|b) =0$, where the scalar product
    $(\cdot|\cdot)$ on ${\Bbb R}^n$ is defined to be
     \startformula
       (a|b) := a\cdot b =\sum_{j=1}^{n}a_jb_j, \qquad |a|^2 := (a|a).
     \stopformula
    (Note that the above equation is {\it not\/} numbered).
