Command/snaptogrid

Summary

The command \snaptogrid is used for moving elements in grid mode.

Settings

\snaptogrid[...]\command{...}
[...]	normal standard yes strict tolerant top bottom both broad fit first last high one low none line strut box min max middle math math:line math:halfline math:-line math:-halfline name
\command	csname
{...}	content

Option	Explanation
\command	\{h,v}box

Settings list

\snaptogrid[...,...]\command{...}
[...,...]	inherits from \definegridsnapping
\command	csname
{...}	content

Option	Explanation
\command	\{h,v}box

Description

Adjust the placement of a box on the grid.

The mandatory argument is an explicit TeX box; box registers defined by \newbox will not work. That leaves \hbox:

\snaptogrid \hbox \bgroup
  content that should be grid aligned
\egroup

and \vbox:

\snaptogrid \vbox {\externalfigure [cow]}

The optional first argument determines the snap method which can be one of the following:

Argument	Description
normal	height: rounded up; depth: rounded up; enlarge by line height and depth
standard	synonym for `normal`
yes	synonym for `normal`
strict	height: rounded up to 0.8 times the line height; depth: rounded up to 0.8times the line height; enlarge by line height and depth
tolerant	height: rounded up to 1.2 times the line height; depth: rounded up to 1.2 times the line height; enlarge by line height and depth
top	height: rounded down; depth: rounded up; enlarge by line height and depth
bottom	height: rounded up; depth: rounded down; enlarge by line height and depth
both	height: rounded down; depth: rounded down; enlarge by line height and depth
broad	height: rounded up; depth: rounded up; enlarge by line height and depth; snap height and depth reduced by 0.8
fit	height: rounded up; depth: rounded up; enlarge by line height and depth; snap height and depth reduced by 1.2
first	align to top line
last	align to bottom line
high	height: rounded down; depth: rounded up; don’t enlarge
one	height: rounded down; depth: rounded down
low	height: rounded up; depth: rounded down; don’t enlarge
none	don’t enlarge
line	enlarge both height and depth by one line depth
strut	enlarge by height and depth (default)
max	synonym for `normal`
min	synonym for `both`
middle	height: rounded up; depth: rounded up

Where snap height and snap depth are the dimensions \globalbodyfontstrutheight and \globalbodyfontstrutdepth, respectively.

Examples

Example 1

\useMPlibrary [dum]
\setuppapersize [A6]
\showgrid
\setuplayout [grid=yes] %% set the global snap method

\def \makedummy {
  %% create a dummy figure with a vsize that is not a multiple of the
  %% leading
  \externalfigure [dummy] [height=\dimexpr4.25\lineheight]%
}

\starttext
  \input ward \par

  method: default
  \snaptogrid\vbox{\makedummy} \par
  \input ward \par

  method: top
  \snaptogrid [top] \vbox{\makedummy} \par
  \input ward \par

  method: line
  \snaptogrid [line] \vbox{\makedummy} \par
  \input ward \par
\stoptext

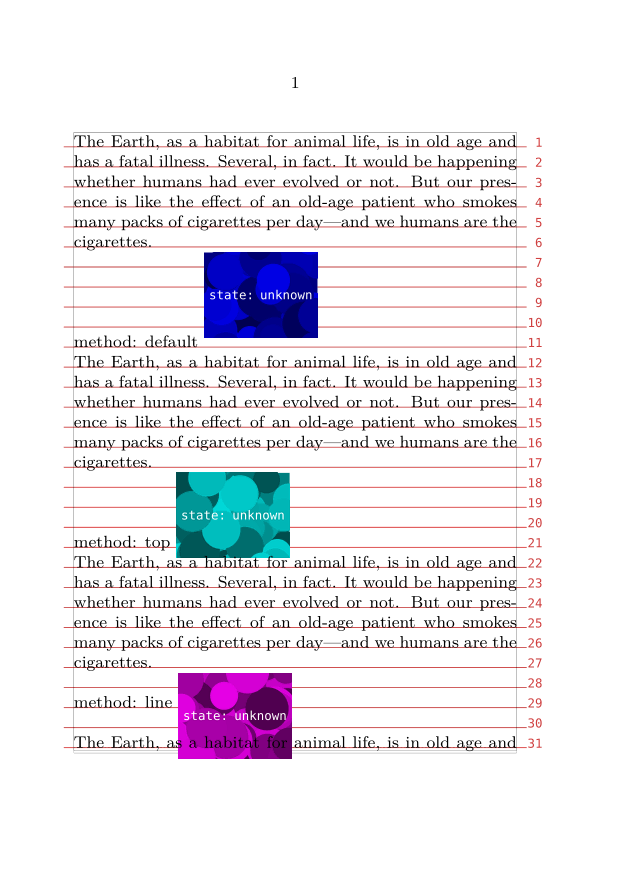

... yields ...
