Command/setupfloat

Summary

The command \setupfloat configures floating objects

Settings

\setupfloat[...,...][...=...,...]
[...,...]	singular
indentnext	yes no auto
default	see \placefloat
fallback	see \placefloat
inner	command
criterium	dimension
method	number
sidemethod	number
textmethod	number
sidealign	height depth line halfline grid normal
grid	see \snaptogrid
local	yes no
command	oneargument
availablewidth	dimension
availableheight	dimension
minwidth	dimension
maxwidth	dimension
location	left right middle flushleft flushright center max inner outer innermargin outermargin inneredge outeredge backspace cutspace leftmargin rightmargin leftedge rightedge
leftmargindistance	dimension
rightmargindistance	dimension
leftmargin	dimension
rightmargin	dimension
innermargin	dimension
outermargin	dimension
bottombefore	command
bottomafter	command
expansion	yes no xml
referenceprefix	+ - text
xmlsetup	name
catcodes	name
freeregion	yes no
spacebefore	none see \blank
spaceafter	none see \blank
width	dimension
height	dimension
offset	dimension none overlay
sidespacebefore	none see \blank
sidespaceafter	none see \blank
spacebeforeside	none see \blank
spaceafterside	none see \blank
sidethreshold	old dimension
margin	dimension
ntop	number
nbottom	number
step	small medium big line depth
nlines	number
cache	yes no
compress	yes no
compressdistance	dimension
...=...,...	inherits from \setupframed

Option Explanation

name of the defined float

singular figure/graphic/table/intermezzo

indentnext

indentation of following text line

criterium

Specify a size such as criterium=.25\textwidth and any side or margin image exceeding this width will be automatically changed to be a centred image.

minwidth

minimal width

maxwidth

maximal width

location

placement (there are even more options!)
left	left of text
right	right of text
flushleft	left of text
flushright	right of text
inner	beside text, spine direction (left)
outer	beside text, outer edge direction (right)
innermargin	in inner (left) margin
outermargin	in outer (right) margin
inneredge	in inner edge area
outeredge	in outer edge area
backspace	spine direction (left)
cutspace	outer edge direction (right)
leftmargin	in left margin
rightmargin	in right margin
leftedge	in left edge area
rightedge	in right edge area

width

fixed width

height

fixed height

cache

re-use image(?)

Description

Configures various float settings. For a previously defined specific float type (with \definefloat ), use the first argument to enter its name.

Examples

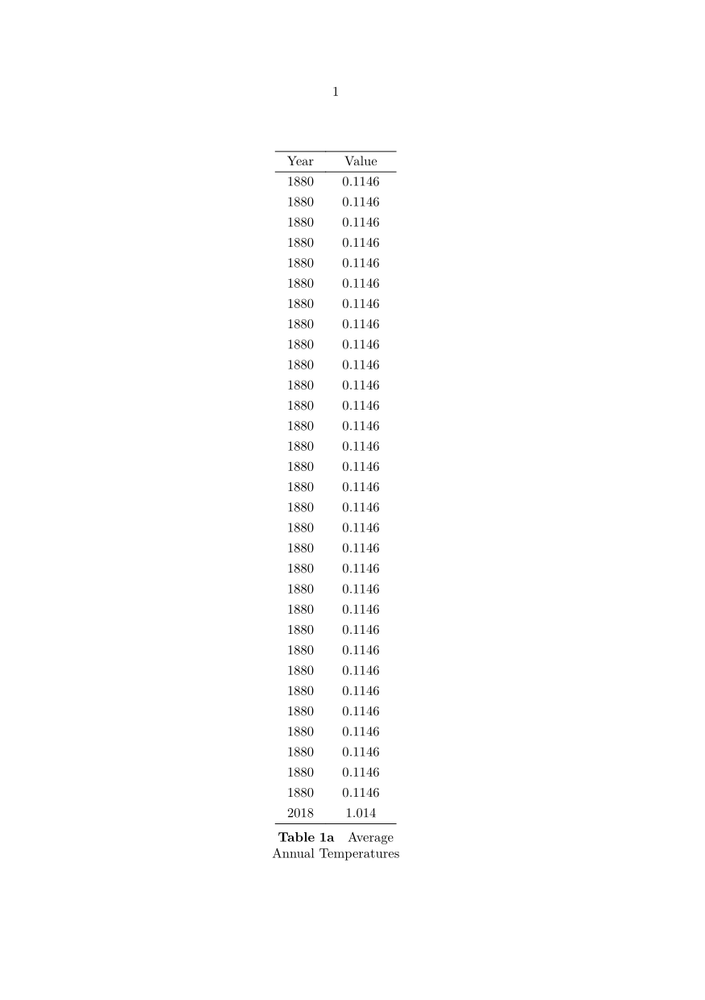

Example 1

\setupfloat[table][default={here,split}]

\setupxtable[frame=off,split=yes,header=repeat,footer=repeat]
\setupxtable[head][topframe=on,bottomframe=on]
\setupxtable[body][]
\setupxtable[foot][bottomframe=on]

\starttext
\startplacetable[title={Average Annual Temperatures}]
\startxtable
\startxtablehead[head]
\startxrow
\startxcell[align=middle,width={0.10\textwidth}] Year \stopxcell
\startxcell[align=middle,width={0.14\textwidth}] Value \stopxcell
\stopxrow
\stopxtablehead
\startxtablebody[body]
\dorecurse{100}{%
\startxrow
\startxcell[align=middle,width={0.10\textwidth}] 1880 \stopxcell
\startxcell[align=middle,width={0.14\textwidth}] 0.1146 \stopxcell
\stopxrow}
\stopxtablebody
\startxtablefoot[foot]
\startxrow
\startxcell[align=middle,width={0.10\textwidth}] 2018 \stopxcell
\startxcell[align=middle,width={0.14\textwidth}] 1.014 \stopxcell
\stopxrow
\stopxtablefoot
\stopxtable
\stopplacetable
\stoptext
