Introduction

Floating Objects (floats) are placed (and numbered) automatically, with a configurable (and optional) caption. They are placed at an appropriate position determined by the TeX float placement algorithm. The algorithm has a number of options that can influence float placement.

Most options in the manual (such as \placeexternalfigure) are described using the generic \placefloat. Additionally, \placelistoffigures creates a list of the figures used in the document.

Floats include "graphic", "figure", "table", and "intermezzo". Additional floats can be defined using \definefloat.

\placefloat[place][reference]{caption}{some float}

place is one or several (comma separated) of:

preference result
left left of text
right right of text
here preferably here
top at top of page
bottom at bottom of page
inleft in left margin
inright in right margin
inmargin in the margin (left or right)
margin in the margin (margin float)
page on a new (empty) page
opposite on the left page
90 orientation (rotation angle), both caption and contents
always precedence over stored floats
force per se here
split (For TABLES only) split tables

(table copied from the manual)

\placefigure and \placetable also accept the same set of options, and allow to create floating figures and captions respectively.

reference

If you don't need to refer to your float, you can leave this parameter out.


\setupfloatframed can also be quite valuable.

Examples

I will explain the examples in terms of \placefigure but the same set of options are also valid for other floats.

\placefigure[none] {} {\externalfigure[figurename]}

\placefigure [nonumber] {caption} {\externalfigure[figurename]}

\placefigure [right,2*line] {caption} {\externalfigure[figurename]}

or

\placefigure [right,2*hang] {caption} {\externalfigure[figurename]}

This does not work correctly at a page boundary. The line option leaves the space above the figures empty, while the hang option also wraps texts above the figure.

Floats and columns

This special case is discussed here.

Floats on empty pages

There’s a way to switch off page headings at full page floats:

\startplacefigure[title=Cow,location={page,high,header}]
   \externalfigure[cow.pdf]
\stopplacefigure

Protruding Floats in Double-Sided Documents

If you have a double-sided document with wide outer margins then you might want your figures to protrude into the margin. In a double-sided document you need to tell ConTeXt to decide whether to make the figure protrude to the left or the right. This can be done as follows:

\definefloat[textmarginfigure][textmarginfigures]
\setupfloat[textmarginfigure][location=inner]
\placetextmarginfigure{\externalfigure[figurename]}

The following code gives a full example that can be pasted into live ConTeXt:

\setuppagenumbering [alternative=doublesided]
\setuplayout[location=middle,backspace=2pc, width=20pc]
\definefloat[textmarginfigure][textmarginfigures]
\setupfloat[textmarginfigure][location=inner]
\starttext
\input knuth
\placetextmarginfigure[here]{}{\externalfigure[figurename][width=30pc]}
\input knuth
\placetextmarginfigure[here]{}{\externalfigure[figurename][width=30pc]}
\input knuth
\stoptext

Landscape Floats in a Portrait Document

Wide tables, for example, can be turned and most likely will need to be put on a separate page.

\startplacetable [location={page,90},title=Table caption]
    \bTABLE [textwidth=\textheight]
        put a wide table here...
    \eTABLE
\stopplacetable

Both the table caption and the contents will be rotated, but not the page header and footer which remain "upright". Notice that one must set the TABLE textwidth to \textheight in order for the table macros to fit properly.

Floats and section headings

By default, section headings don't wrap “around” floating objects. Instead, they will be moved down as far as needed to appear below the float. This behaviour can be controlled using the aligntitle option of the \setupheads or \setuphead commands.

Captions

To change the style of figure(table) captions, use \setupcaptions.

To use a different (e.g. abbreviated) caption in the list of floats, you can do:

\startplacefigure[title={A rather long caption},list={A short caption}]
This is the content of the actual figure
\stopplacefigure

In MkII this was possible by:

\defineselector[caption][max=2,n=2]
\starttext
\setupselector[caption][n=1]
\completelistoffigures
\setupselector[caption][n=2]
\placefigure[][]
{\select{caption}
 {Short caption for list}
 {A rather longer caption which will appear below the figure itself}}
 {This is the content of the actual figure}
\stoptext

Float Combinations

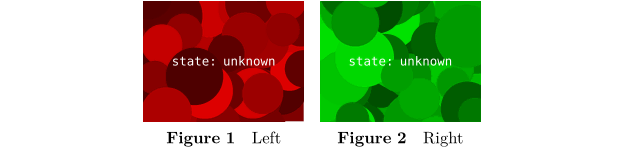

If you want to place floats besides each other or in a regular matrix, each with its own number and caption, you need a float combination:

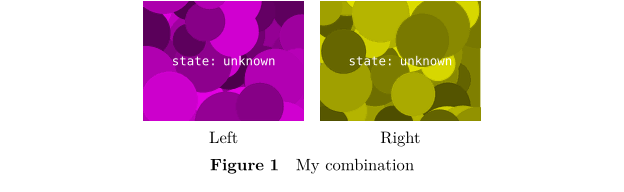

If you want only one number for the whole thing, you may use a regular combination within a float:


See also \startcombination, \startfloatcombination and Combinations.

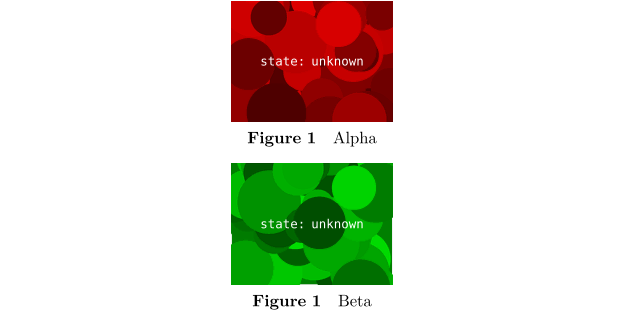

Subfloats

Subfloatnumbering creates subfigures sharing a mutual figure prefix and an individual subfigure designator (e.g. figure 1a), figure 1b, etc.). The command \startsubfloatnumbering is used for this.

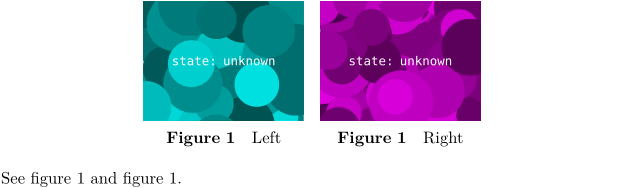

Subfloats can also be used with floatcombinations:


See also \startcombination, \startfloatcombination, Combinations and \startsubfloatcombination.

Flushing floats

The command \placefloats outputs all pending floats.

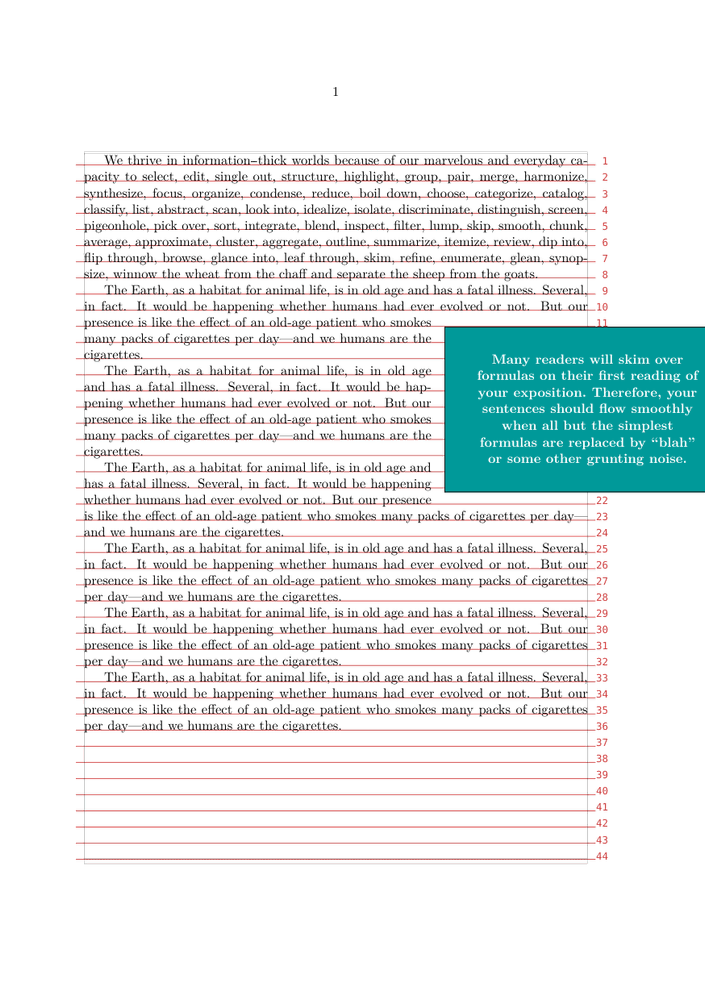

Playing with side floats position

From tex.stackexchange.com "Place a quote half over margin" (2025)

You can use \movesidefloat.

Basic situation

With \movesidefloat
