Work in progress.

This orientation page and the related guides are currently being drafted and reviewed. Please feel free to edit, correct, or improve them.

Critical apparatus guides: ← Guide 3 — Managing witnesses and textual variants · Orientation · Glossary · Guide 4 of 6 · Next: Guide 5 — Typesetting an original text and translation in parallel →


A critical edition may need more than one apparatus. Variant readings, sources, translation choices, and discursive editorial comments do not answer the same question.

One passage may require:

 Judgment;

 understanding rather than intellect.

Combining these observations in one long entry obscures their different functions. ConTeXt can instead represent each recurring class of annotation as an independent note series.

The progression is:

Stage Editorial problem ConTeXt mechanism
1 Distinguish textual evidence from sources and commentary Separate note series
2 Help the reader identify each layer Distinct markers and styles
3 Attach several kinds of annotation to one passage Adjacent layer-specific commands
4 Add translation commentary without merging it with the apparatus A third note series
5 Reuse the architecture throughout a project Shared environment file

Core distinction. An apparatus layer is an editorial category. A ConTeXt note series is the mechanism used here to implement that category. The two terms are related, but they are not interchangeable.

1. Decide whether a separate layer is justified

A separate layer is useful when a class of annotations has:

Typical layers include:

Layer Main question answered Typical contents
Textual apparatus What textual evidence supports the constituted text? variants, omissions, additions, corrections
Source apparatus What sources, parallels, or allusions inform the passage? quotations, parallels, source identifications
Translation notes Why has the text been translated in this way? alternatives, semantic difficulties, terminology
Editorial notes What broader explanation does the reader need? discursive commentary and editorial decisions

Not every isolated annotation requires its own layer. An occasional source reference may remain an ordinary footnote. A recurring source apparatus deserves its own series.

Editorial principle. Create a separate layer because the notes serve a distinct and recurring function, not merely because another note series is technically possible.

2. Use explicit names

When several series exist, a generic name such as:

apparatus

becomes ambiguous.

Prefer internal names that state the editorial function:

textualapparatus
sourceapparatus
translationnotes

Likewise, prefer commands such as:

\variant
\sourceparallel
\translationnote

rather than:

\noteA
\noteB
\noteC

These names form part of the editorial model and should remain understandable when the source is revisited later.

3. Define two independent layers

Begin with a textual apparatus and a source apparatus:

\definenote
  [textualapparatus]

\definenote
  [sourceapparatus]

ConTeXt creates one insertion command for each series:

\textualapparatus{...}

\sourceapparatus{...}

Place both at page level:

\setupnote
  [textualapparatus]
  [location=page]

\setupnote
  [sourceapparatus]
  [location=page]

At this stage, both series are independent, but they still look similar.

4. Give each layer a distinct marker and style

The reader should be able to distinguish the layers immediately.

A simple design uses Arabic numbers for textual evidence and lowercase letters for sources:

\setupnotation
  [textualapparatus]
  [way=bypage,
   numberconversion=numbers]

\setupnotation
  [sourceapparatus]
  [way=bypage,
   numberconversion=characters]
Layer Marker sequence Suggested rhythm
Textual apparatus 1, 2, 3, … compact and abbreviated
Source apparatus a, b, c, … slightly more open

Define separate styles:

\define\textualapparatusstyle
  {\tfx
   \setupinterlinespace[small]}

\define\sourceapparatusstyle
  {\tfx
   \setupinterlinespace[medium]}

Assign them independently:

\setupnotation
  [textualapparatus]
  [way=bypage,
   numberconversion=numbers,
   alternative=serried,
   width=fit,
   distance=.5em,
   style=\textualapparatusstyle,
   numberstyle=\tfxx]

\setupnotation
  [sourceapparatus]
  [way=bypage,
   numberconversion=characters,
   alternative=serried,
   width=fit,
   distance=.7em,
   style=\sourceapparatusstyle,
   numberstyle=\tfxx]

Version check. Confirm the exact output of numberconversion values with the ConTeXt release used for the edition, especially when several note series employ different marker systems.

5. Build the textual and source interfaces

The textual layer can reuse the interface introduced in the earlier guides:

\define[2]\variant
  {#1\textualapparatus{{\it #1}] #2}}

\define[2]\reading
  {#1 {\it #2}}

\define[1]\omission
  {{\it om.} {\it #1}}

Use:

\variant
  {Reason}
  {\reading{Judgment}{B D};
   \omission{E}}

For the source layer, define:

\define[2]\sourceparallel
  {\sourceapparatus
     {{\it #1}: #2}}

Use:

Reason\sourceparallel
  {Aristotle}
  {{\it De anima} III.4}
guides the understanding.

The source command identifies an author or source label separately from the reference.

Command Function Layer
\variant Attach textual evidence to a lemma textual apparatus
\reading Format an alternative reading and its witnesses textual apparatus
\omission Record omission of the lemma textual apparatus
\sourceparallel Attach a source or parallel-passage reference source apparatus

6. Attach two layers to the same passage

A textual note and a source note may refer to the same word:

\variant
  {Reason}
  {\reading{Judgment}{B D};
   \omission{E}}
\sourceparallel
  {Aristotle}
  {{\it De anima} III.4}
guides the understanding.

The adjacent commands create entries in different series.

Conceptually, the page contains three separate statements:

Level Content
Edited text Reason
Textual evidence Reason] Judgment B D; om. E
Source relation Aristotle: De anima III.4

This is clearer than merging everything into:

Reason] Judgment B D; om. E; cf. Aristotle, De anima III.4

Separation of responsibilities. Two commands may annotate the same passage while preserving distinct editorial functions. Proximity in the source does not require the information to be merged into one entry.

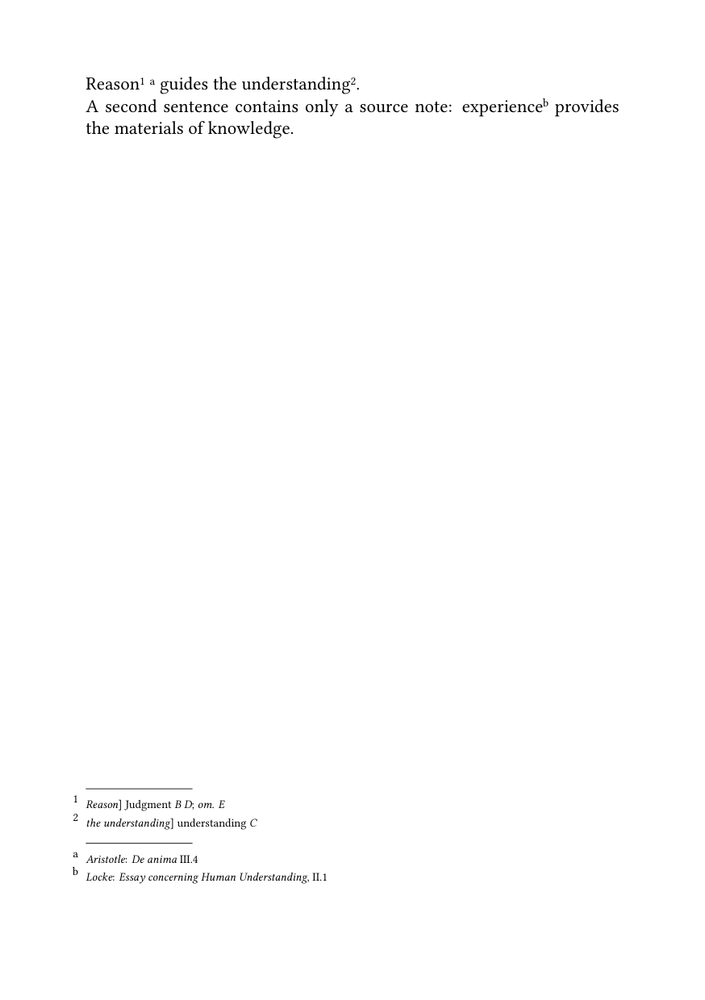

7. Compile a first two-layer example

This first MWE tests:

8. Add a third layer for translation notes

Define:

\definenote
  [translationnotes]

\setupnote
  [translationnotes]
  [location=page]

Give it a third marker system:

\define\translationnotestyle
  {\tfx
   \setupinterlinespace[medium]}

\setupnotation
  [translationnotes]
  [way=bypage,
   numberconversion=romannumerals,
   alternative=serried,
   width=fit,
   distance=.7em,
   style=\translationnotestyle,
   numberstyle=\tfxx]

Define the interface:

\define[1]\translationnote
  {\translationnotes{#1}}

Use:

understanding\translationnote
  {The term is translated here as “understanding” rather than “intellect”.}

The three-layer design is now:

Layer Function Example marker
Textual apparatus Establish the edited text 1, 2, 3
Source apparatus Identify sources and parallels a, b, c
Translation notes Explain translation choices i, ii, iii

The visual order of the collected series must be confirmed in the actual document. The order of definitions alone should not be treated as a guarantee for every page layout.

9. Distinguish markers from labels

Different marker systems are the core method. Short labels inside the entries are optional.

For proofing, one may define:

\define[1]\textuallabel
  {{\bf var.}\space #1}

\define[1]\sourcelabel
  {{\bf src.}\space #1}

and incorporate them into the interfaces:

\define[2]\variant
  {#1\textualapparatus
     {\textuallabel{{\it #1}] #2}}}

\define[2]\sourceparallel
  {\sourceapparatus
     {\sourcelabel{{\it #1}: #2}}}

The entries then begin with:

var. Reason] Judgment B D
src. Aristotle: De anima III.4
Technique Status
Distinct marker systems Core method
Distinct entry styles Core method
Short labels in entries Optional, especially useful for proofing
One automatic heading per non-empty page-note block Advanced, project-specific placement problem

Placement caution. A command executed before every notation entry is not equivalent to a heading printed once before the complete collected block. Do not use \setupnotation[before=...] for a layer heading unless repetition before every entry is intended.

10. Keep ordinary footnotes independent

An edition may also contain ordinary explanatory footnotes:

\footnote{A discursive explanation intended for the general reader.}

These serve a different purpose from:

\textualapparatus{...}
\sourceapparatus{...}
\translationnotes{...}
Series Function
Ordinary footnotes General explanation or commentary
Textual apparatus Documentary evidence for the constituted text
Source apparatus Sources and parallel passages
Translation notes Translation choices and alternatives

Their combined placement must be tested when several systems occur on the same page.

11. Reuse the setup in an environment file

A project should keep the shared layer architecture outside its textual components.

For example:

env-multiple-apparatus.mkxl

may contain:

Load it with:

\environment env-multiple-apparatus

The relationship is:

env-multiple-apparatus.mkxl
              │
              │ loaded by
              ▼
          main.mkxl
              │
              ├── edited text
              ├── textual variants
              ├── source annotations
              └── translation notes

Practical consequence. The environment contains the shared architecture; the components contain the edited text and annotations. Changing the environment can therefore change the design of every component that loads it.

The detailed architecture of projects, products, components, and environments belongs to project management rather than to this guide.

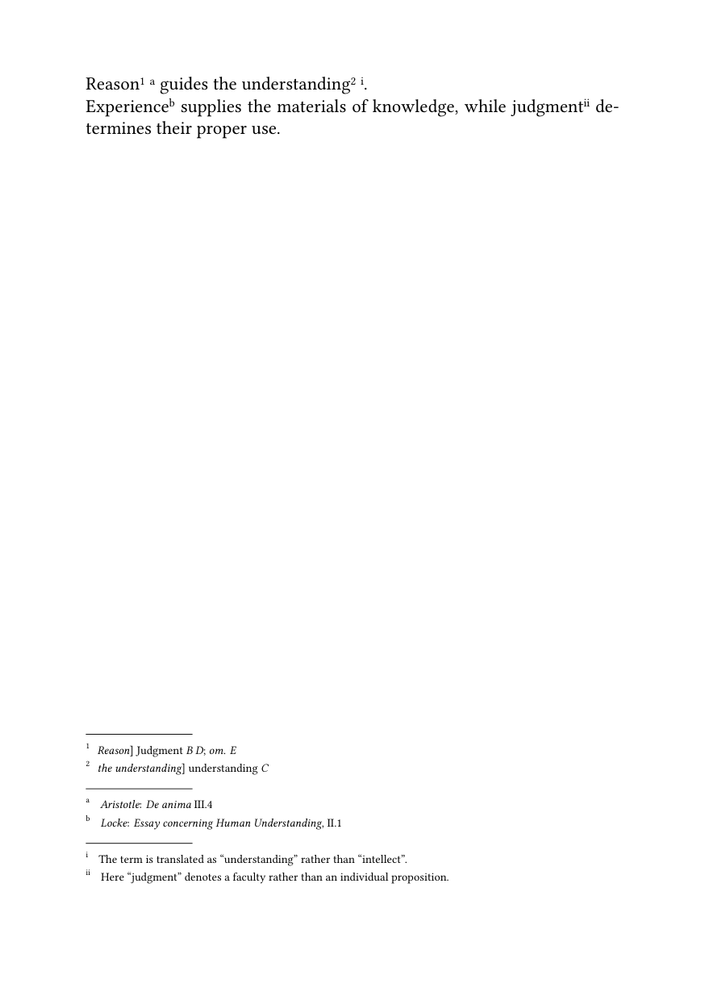

12. Compile the complete three-layer example

Before publication, confirm:

13. Test representative pages

A multiple-layer design must be tested beyond one attractive demonstration.

Test page Textual apparatus Source apparatus Translation notes Ordinary footnotes
A yes no no no
B yes yes no no
C no yes yes no
D yes yes yes yes
E no no no no

Check:

Testing requirement. A design that works with two short notes may fail when all layers contain long entries. Base the final layout on representative pages from the real edition.

14. Understand the limits

Independent note series provide editorial separation, but they do not create a structured critical database.

They do not by themselves:

For sorting, filtering, and validation, see Managing structured critical data with Lua.

For original and translation in parallel, see Typesetting an original text and translation in parallel.

What this guide has established. Distinct editorial functions can be implemented as independent ConTeXt note series. Each layer can have its own name, marker system, typography, and editorial interface while remaining attached to the same passage.

15. Command summary

Command Purpose
\definenote[textualapparatus] Define the textual apparatus series
\definenote[sourceapparatus] Define the source apparatus series
\definenote[translationnotes] Define the translation-note series
\setupnote[...] Control placement and block-level behaviour
\setupnotation[...] Control markers and individual entries
\variant Attach textual evidence to a lemma
\reading Format an alternative reading
\omission Record omission of the lemma
\sourceparallel Attach a source or parallel-passage note
\translationnote Attach a translation note

The editorial commands are defined by this guide. They are not predefined ConTeXt commands.

16. Choose the next guide

Next task Continue with
Build one simple apparatus Guide 1
Change its typography Guide 2
Declare witnesses and textual operations Guide 3
Compose an original text and translation in parallel Guide 5
Sort, filter, and validate critical records Guide 6
Process TEI XML critical data Building critical editions from TEI XML
