Work in progress.

This orientation page and the related guides are currently being drafted and reviewed. Please feel free to edit, correct, or improve them.

Critical apparatus guides: ← Guide 1 — Building a simple critical apparatus · Orientation · Glossary · Guide 2 of 6 · Next: Guide 3 — Managing witnesses and textual variants →


This guide shows how to change the appearance of an existing critical apparatus without rewriting its editorial entries.

It assumes that the document already uses a separate apparatus note series and a small editorial interface such as:

\define[2]\variant
  {#1\apparatus{{\it #1}] #2}}

\define[2]\reading
  {#1 {\it #2}}

\define[1]\omission
  {{\it om.} {\it #1}}

\define[2]\addition
  {{\it add.} #1 {\it #2}}

The editorial commands remain stable throughout the guide. Only the typographical setup changes.

The progression is:

Stage Typographical problem Main mechanism
1 Distinguish individual entries from the complete apparatus block \setupnotation and \setupnote
2 Control entry size, number style, spacing, and continuation lines notation settings
3 Give recurring editorial categories a consistent visual treatment named style commands
4 Separate the apparatus block from the edited text block spacing and separator
5 Reuse the same design throughout a project shared setup or environment file

For the construction of the apparatus mechanism itself, see Building a simple critical apparatus.

Formatting principle. The editorial source describes lemmas, readings, omissions, additions, and witness sigla. The formatting setup determines how those categories are displayed. A change of design should not require a change to the critical data.

1. Distinguish entry design from block design

ConTeXt separates the presentation of individual apparatus entries from the presentation of the complete apparatus block.

Command Controls Typical settings
\setupnotation[apparatus] Individual markers and entries number style, entry style, width, distance, compact arrangement
\setupnote[apparatus] Complete apparatus block location, space above the block, separator rule

Use \setupnotation when changing:

Use \setupnote when changing:

Key distinction. A separator intended for the complete apparatus belongs to \setupnote. A setting applied through \setupnotation affects individual entries.

2. Start from a working apparatus

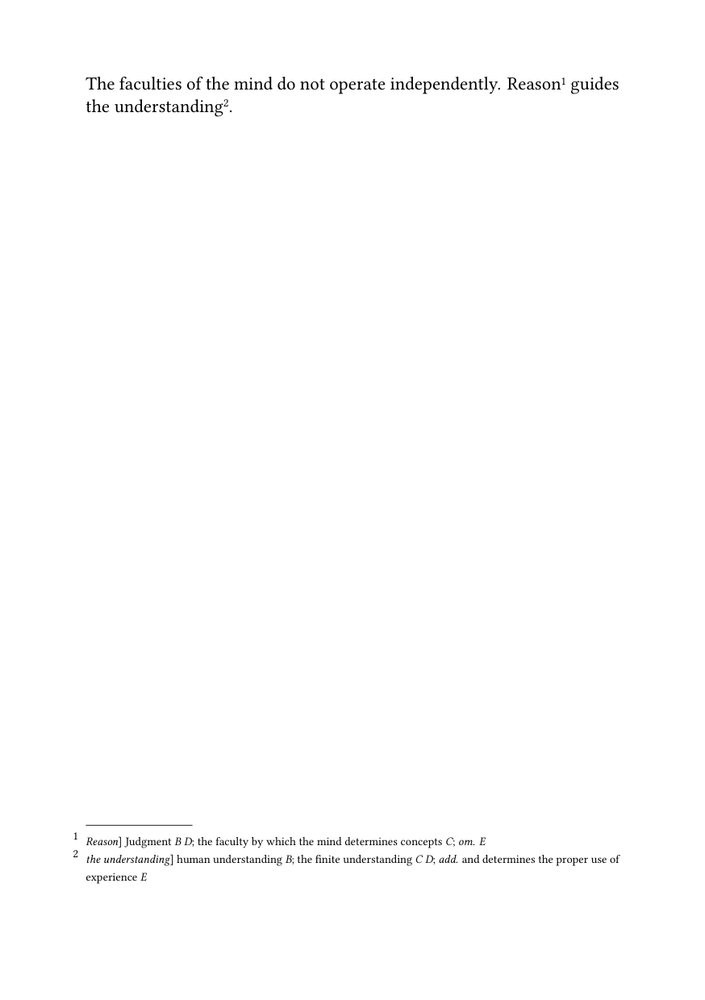

The following example will be used as the reference source for the guide:

The apparatus already works. The remaining sections change only its presentation.

3. Format individual entries

The notation setup controls the size, number style, spacing, and horizontal arrangement of each entry.

3.1. Set the entry and number sizes

A critical apparatus is commonly set smaller than the edited text:

\setupnotation
  [apparatus]
  [style=\tfx]

The number can be styled independently:

\setupnotation
  [apparatus]
  [style=\tfx,
   numberstyle=\tfxx]
Setting Effect
style=\tfx Sets the apparatus entry in a smaller relative size
numberstyle=\tfxx Makes the entry number slightly smaller again

Relative size commands follow the current body font and therefore remain proportional if the body font changes.

3.2. Keep the number close to the entry

A compact arrangement can be obtained with:

\setupnotation
  [apparatus]
  [alternative=serried,
   width=fit,
   distance=.5em]
Setting Function
alternative=serried Places the number and entry in a compact sequence
width=fit Gives the number only the width it requires
distance=.5em Sets the space between number and entry

The combined notation setup becomes:

\setupnotation
  [apparatus]
  [way=bypage,
   numberconversion=numbers,
   alternative=serried,
   width=fit,
   distance=.5em,
   style=\tfx,
   numberstyle=\tfxx]

3.3. Control line spacing with a named style

Font size and line spacing are separate choices. A named style keeps them together:

\define\apparatusstyle
  {\tfx
   \setupinterlinespace[small]}

\setupnotation
  [apparatus]
  [style=\apparatusstyle]

A more spacious proof setting can be obtained by changing only the style:

\define\apparatusstyle
  {\tfx
   \setupinterlinespace[medium]}

The editorial entries remain unchanged.

Testing requirement. A one-line entry does not reveal whether a design is robust. Test long entries, continuation lines, long witness lists, and both one-digit and two-digit entry numbers.

4. Define recurring editorial styles

The apparatus contains recurring categories whose appearance should be controlled globally.

Editorial category Possible treatment
Lemma italic or another clearly distinguished style
Alternative reading upright type
Editorial abbreviation italic
Witness siglum italic, bold, or small capitals
Editor responsible for a conjecture a style distinct from witness sigla

Define one command for each recurring category:

\define[1]\lemmastyle
  {{\it #1}}

\define[1]\witnesses
  {{\it #1}}

\define[1]\editorname
  {{\sc #1}}

Then use those commands inside the editorial interface:

\define[2]\variant
  {#1\apparatus{\lemmastyle{#1}] #2}}

\define[2]\reading
  {#1 \witnesses{#2}}

\define[1]\omission
  {{\it om.} \witnesses{#1}}

\define[2]\addition
  {{\it add.} #1 \witnesses{#2}}

To change every witness siglum from italics to bold, redefine only:

\define[1]\witnesses
  {{\bf #1}}

In this guide, \witnesses formats material already supplied by the editor. It does not declare, resolve, or validate witness identifiers.

Design principle. A typographical command should represent a recurring editorial category. Avoid scattering local font switches throughout the critical source.

5. Format the complete apparatus block

The complete block is controlled through \setupnote.

5.1. Add space above the apparatus

A simple visual separation is:

\setupnote
  [apparatus]
  [location=page,
   before=\blank[medium]]

The amount of space depends on page size, body font, and apparatus density.

5.2. Add a separator rule

A rule can be requested at block level:

\setupnote
  [apparatus]
  [location=page,
   before=\blank[small],
   rule=on]

The rule should appear once above the collected apparatus entries.

A custom separator can be defined separately:

\define\apparatusseparator
  {\blackrule
     [width=3cm,
      height=.4pt]}

and assigned to the apparatus block:

\setupnote
  [apparatus]
  [location=page,
   before=\blank[medium],
   rule=command,
   rulecommand=\apparatusseparator]

This keeps the responsibilities distinct:

Element Controlled by
Space above the apparatus before=\blank[...]
Shape of the separator \apparatusseparator
Individual entries \setupnotation[apparatus]

Version check. Custom note-rule interfaces may vary between ConTeXt releases. Compile this setup with the ConTeXt version intended for publication before adopting it throughout a project.

Do not attach the block separator to every entry:

% Wrong level for a single apparatus separator.
\setupnotation
  [apparatus]
  [before=\apparatusseparator]

That would risk placing a separator before each individual entry rather than once above the complete block.

6. Compare compact and spacious designs

The same editorial source can support different typographical purposes.

Setting Compact publication design Spacious proof design
Interline spacing small medium
Number distance .5em .8em
Number size \tfxx \tfx
Purpose save space while remaining readable make variants easier to inspect

A compact setup:

\define\apparatusstyle
  {\tfx
   \setupinterlinespace[small]}

\setupnotation
  [apparatus]
  [alternative=serried,
   width=fit,
   distance=.5em,
   style=\apparatusstyle,
   numberstyle=\tfxx]

A more spacious setup:

\define\apparatusstyle
  {\tfx
   \setupinterlinespace[medium]}

\setupnotation
  [apparatus]
  [alternative=serried,
   width=fit,
   distance=.8em,
   style=\apparatusstyle,
   numberstyle=\tfx]

Neither setup requires rewriting:

\variant
  {Reason}
  {\reading{Judgment}{B D};
   \omission{E}}

7. Build the complete formatted apparatus

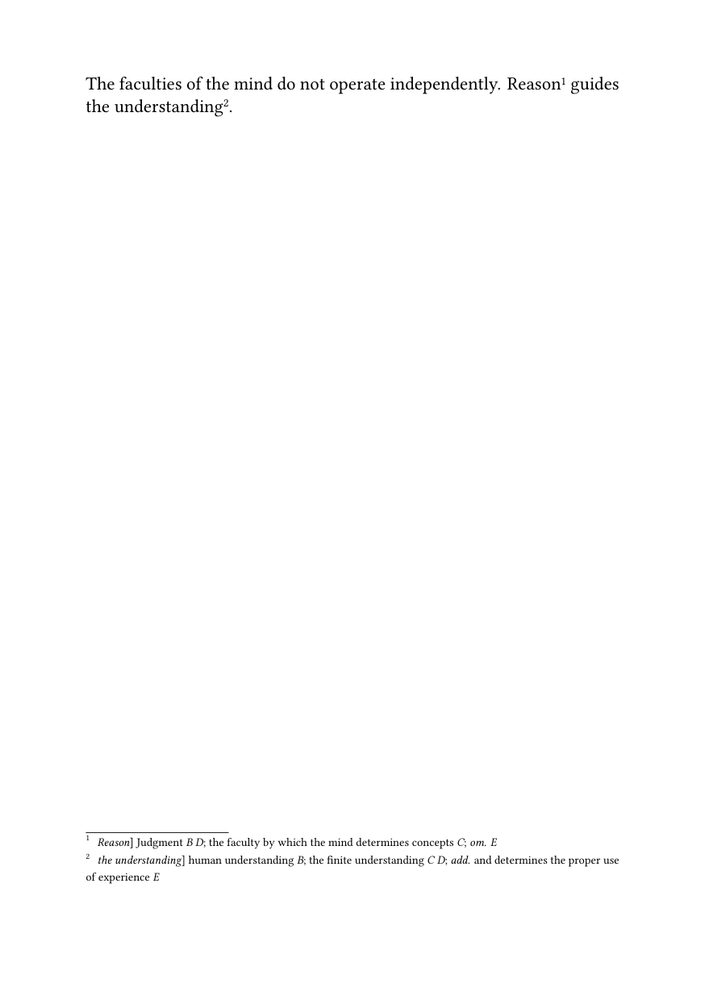

The following example combines the principal settings developed in this guide:

The example separates three levels:

Level Commands
Editorial source \variant, \reading, \omission, \addition
Entry design \setupnotation[apparatus], \apparatusstyle, and category styles
Block design \setupnote[apparatus] and \apparatusseparator

8. Reuse the setup

A larger project should not repeat the complete apparatus setup in every component.

The apparatus definitions can be moved into a separate environment file, for example:

env-critical-apparatus.mkxl

The document then loads it with:

\environment env-critical-apparatus

The environment contains the shared definitions and settings, but normally not \starttext or \stoptext.

A minimal organization is:

project/
├── env-critical-apparatus.mkxl
├── main.mkxl
├── chapter-01.tex
└── chapter-02.tex

If a component is compiled from another directory, the relative path must be stated explicitly unless that directory is already part of ConTeXt's search path. For example:

\environment ../env/env-critical-apparatus.mkxl

Practical consequence. Changing the apparatus design in one shared environment changes every document that loads it. The individual components do not need to be edited.

The detailed organization of projects, products, components, and environments belongs to project management rather than to apparatus formatting. This guide therefore limits itself to the principle of reusable shared setup.

9. Test the design and recognize its limits

A formatting setup should be tested on representative pages from the real edition.

Test case What to inspect
One short entry basic number and text spacing
Several consecutive entries consistency and density
One long wrapped entry continuation-line alignment
Two-digit entry numbers number width and distance
Long witness lists or additions line breaking and readability
Ordinary footnotes and apparatus entries on one page separation between note systems
Dense recto and verso pages page balance and available text area

The present approach still has structural limits:

For these later stages, see:

What this guide has established. The editorial commands can remain stable while entry size, number style, spacing, witness styling, continuation lines, and the complete apparatus block are controlled independently.

10. Complete source and next guide

The complete source is the MWE given in Section 7.

Readers following the collection in order should continue with Guide 3: Managing witnesses and textual variants.

Next task Continue with
Build the apparatus mechanism itself Guide 1
Declare witnesses and manage textual operations Guide 3
Create several independent critical layers Guide 4
Compose an original text and translation in parallel Guide 5
Sort, filter, and validate structured critical records Guide 6
Process an edition encoded in TEI XML Building critical editions from TEI XML
