References notes and floats/References

1. The reference model

Cross-referencing is easier to understand if four things are kept separate:

1. the target — a document object or position;
2. the reference identifier — a stable name assigned to that target;
3. the representation — what a command such as \in , \at , or \about prints;
4. the optional interactive link — PDF navigation added by ConTeXt.

A useful mental model is:

document object or position
          |
          v
    reference target
          |
          v
 stable identifier
  sec:introduction
          |
    +-----+------+------+
    |            |      |
    v            v      v
   \in          \at   \about
    |            |      |
number/value     page   title/text
    \            |      /
     \           |     /
      +----------+----+
                 |
        optional interaction
                 |
                 v
          clickable PDF link

1.1. Where this page fits

This page combines orientation, explanation, and small working examples.

The surrounding documentation has different roles:

The documentation can therefore be read as:

orientation / explanation
          |
          v
 understand the model
          |
          +--------> practical examples
          |
          +--------> command reference
          |
          `--------> specialized mechanisms

2. First working reference

Structural commands can define a reference at the same time as they create the document object.

For example:

• \setupinteraction
    [state=start]

  \setuppapersize[A6]

  \starttext

  \startchapter
    [title={Dear Reader},
     reference={ch:preface}]

  I really like ConTeXt.

  \stopchapter

  As I told you in
  \in{chapter}[ch:preface]
  on
  \at{page}[ch:preface],
  I really like ConTeXt.

  \stoptext


•

The chapter creates the target:

reference={ch:preface}

The stable identifier is:

ch:preface

The same target can then be queried in different ways.

This:

\in{chapter}[ch:preface]

asks ConTeXt for its structural number, while:

\at{page}[ch:preface]

asks for its page.

The compact heading syntax found in many existing documents also allows a reference identifier:

\chapter[ch:preface]{Dear Reader}

Both forms illustrate the same principle: assign a stable identifier to the object rather than hard-coding its current number or page.

3. Targets and stable identifiers

3.1. Structural targets

Many ConTeXt structural commands accept a reference identifier directly.

For example:

\startsection
  [title={Reference systems},
   reference={sec:references}]

...

\stopsection

Other document objects can be referenced in the same manner, including chapters, sections, figures, tables, formulas, items, and notes.

A useful naming convention is:

ch:preface
sec:references
fig:architecture
tab:results
eq:identity
note:source

Such identifiers remain meaningful even when numbering or pagination changes.

fig:cow

document::reference

3.2. Explicit targets

Sometimes there is no chapter, section, figure, or other structural command to which the reference can naturally be attached.

ConTeXt therefore provides commands for creating explicit reference targets.

pagereference

\pagereference[zapfquote]

This associates the identifier with a document position.

It can subsequently be queried, for example, with:

See \at{page}[zapfquote].

textreference

\textreference[ref:zapf]{Zapf}

creates a target and associates text with that reference.

reference

\reference provides a target with associated reference text:

\reference[ref:example]{Example text}

It is useful when both the position and associated text belong to the same reference.

contentreference

For content whose destination area must correspond to a framed or boxed region, ConTeXt also provides \contentreference:

\contentreference
  [reference]
  [framed settings]
  {text}

This is a more specialized mechanism.

With interaction enabled, its destination can be associated with the area of the content rather than merely with a baseline position.

For ordinary structural references, attach reference=... directly to the structural object whenever possible.

3.3. More than one identifier

Interfaces that accept several reference labels can use comma-separated identifiers where supported.

For example, this can be useful while migrating an older reference naming scheme to a newer one.

In ordinary documents, however, one clear and systematic identifier for each target is usually easier to maintain.

4. Retrieving information from a reference

A reference identifier does not determine by itself what will be printed.

Different commands ask ConTeXt for different information about the same target.

Suppose we define:

\startsection
  [title={A theory of reference},
   reference={sec:theory}]

...

\stopsection

We can then use:

\in{section}[sec:theory]

to retrieve the structural number,

\at{page}[sec:theory]

to retrieve the page,

and:

\about[sec:theory]

to retrieve descriptive text associated with the reference, such as the title where applicable.

The central distinction is:

4.1. A useful mental distinction

Do not confuse:

sec:theory

with:

3.2

or:

page 17

The first is the stable identifier.

The other values are representations obtained from that target.

In schematic form:

sec:theory
    |
    +---- \in ----> 3.2
    |
    +---- \at ----> 17
    |
    `---- \about -> A theory of reference

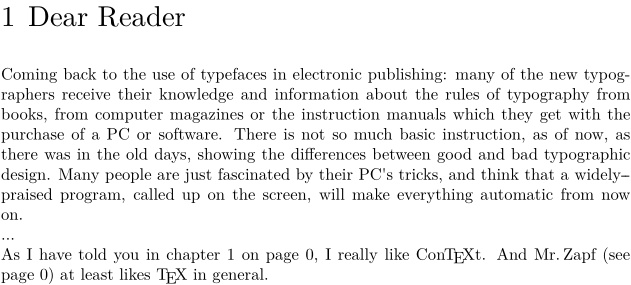

5. A simple example with an arbitrary page target

The traditional Zapf example can now be understood as a combination of a structural target and an explicit page target:

• \setupinteraction
    [state=start]

  \setuppapersize[A6]

  \starttext

  \startchapter
    [title={Dear Reader},
     reference={ch:preface}]

  \pagereference[zapfquote]

  \input zapf

  \stopchapter

  As I have told you in
  \in{chapter}[ch:preface]
  on
  \at{page}[ch:preface],
  I really like \ConTeXt.

  And Mr.\,Zapf
  (see \at{page}[zapfquote])
  at least likes \TeX\ in general.

  \stoptext


•

Here:

• ch:preface identifies a structural target;
• zapfquote identifies an explicit position;
• \in retrieves structural information;
• \at retrieves page information.

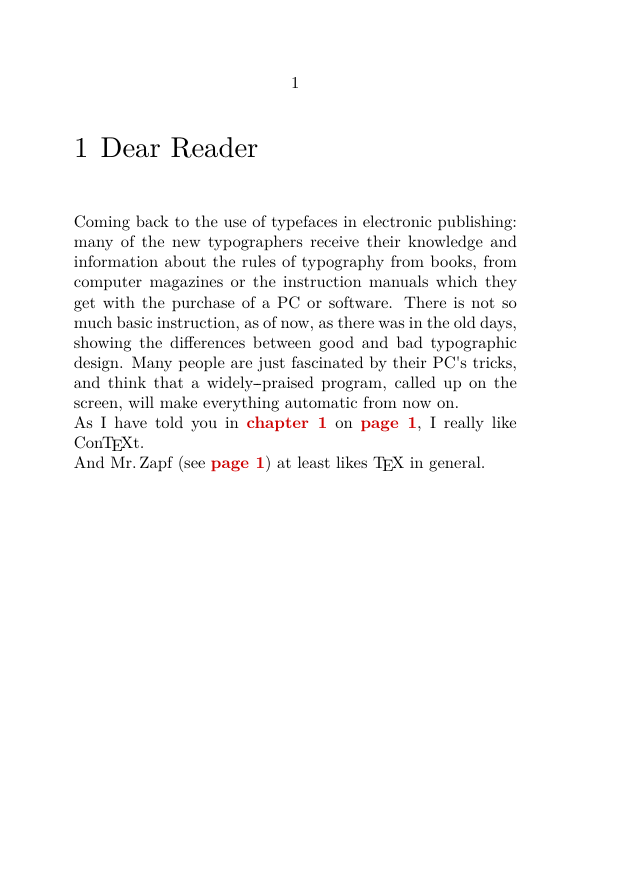

6. Interaction and PDF links

Enable PDF interaction with:

\setupinteraction
  [state=start]

References can then become interactive links automatically.

Presentation can also be configured, for example:

\setupinteraction
  [state=start,
   color=green,
   style=bold]

For detailed interaction parameters, see:

• \setupinteraction

For URLs and links to web resources, see:

• URLs and external links

see page 23

see \at{page}[sec:example]

7. Debugging references

Large documents can contain hundreds or thousands of reference targets.

A dedicated page describes tools for visualizing reference targets and references:

• References — Visual debugging

The command:

\showreferences

has historically been used when examining reference and destination information during debugging.

Its precise visible effect may depend on the current ConTeXt version and enabled trackers, so the dedicated visual-debugging page should be consulted when diagnosing a current LMTX document.

8. Defining reusable reference formats

Repeated constructions such as:

\in{section}[sec:example]

can be given a semantic formatting command with \definereferenceformat.

For example:

\definereferenceformat
  [insec]
  [text=section]

\definereferenceformat
  [ineq]
  [left=(,
   right=),
   text=equation]

You can then write:

See \ineq[eq:identity] or \insec[sec:example].

instead of repeatedly specifying the presentation at every reference.

A complete example is:

• \setuppapersize[A6]

  \definereferenceformat
    [insec]
    [text=section]

  \definereferenceformat
    [ineq]
    [left=(,
     right=),
     text=equation]

  \starttext

  \startsection
    [title={An example},
     reference={sec:example}]

  \placeformula[eq:identity]
  \startformula
  (a+b)^2=a^2+2ab+b^2
  \stopformula

  See \ineq[eq:identity]
  or \insec[sec:example].

  \stopsection

  \stoptext


•

reference identity
       !=
reference presentation

9. Structural prefixes in references

The structure printed in a heading and the structure printed in a reference are related, but they need not be identical.

For example, a document may display sections without the chapter prefix while a reference must include the chapter number to remain unambiguous.

\setupreferencestructureprefix controls which structural prefix segments appear in references.

For example:

\setupreferencestructureprefix
  [default]
  [prefixsegments=2:2]

\setupreferencestructureprefix
  [default]
  [prefixsegments=2:3]

\setupreferencestructureprefix
  [default]
  [prefixsegments=2:4]

With a structure in which chapters use Roman numerals and sections use letters, different segment ranges can produce progressively more structural context.

The traditional shorthand illustration is:

\setupreferencestructureprefix [default] [prefixsegments=2:2] % no prefix
\setupreferencestructureprefix [default] [prefixsegments=2:3] % I
\setupreferencestructureprefix [default] [prefixsegments=2:4] % I.A

\setupreferencestructureprefix [default] [prefixsegments=3:4] % I.A
\setupreferencestructureprefix [default] [prefixsegments=4:4] % A
\setupreferencestructureprefix [default] [prefixsegments=5:4] % no prefix

The exact result depends on the document's structural hierarchy and numbering configuration.

10. Changing separators in referenced prefixes

The separator used between structural levels can be configured independently.

For example, to use a hyphen rather than a dot between structural components:

\definestructureseparatorset
  [default]
  [,,-]

See:

• \definestructureseparatorset

This can be useful when a reference such as:

2.3

must instead be presented as:

2-3

according to the document's house style.

11. Heading punctuation and reference punctuation

Sometimes punctuation that belongs in a heading number should not be repeated when that number is referenced.

For example:

3. This is a new section

may be desirable as a heading, while the prose should say:

In section 3 we found ...

rather than:

In section 3. we found ...

A long-standing solution uses processors and conversion sets:

\defineprocessor
  [dostopper]
  [right=.]

\defineprocessor
  [nostopper]
  [right=]

\defineconversionset
  [stopperconversionyes]
  []
  [dostopper->n]

\defineconversionset
  [stopperconversionnop]
  []
  [nostopper->n]

\setuphead
  [chapter]
  [sectionconversionset=stopperconversionyes]

\setupreferencestructureprefix
  [default]
  [prefixconversionset=stopperconversionnop]

\starttext

\chapter[one]{First heading}

\input knuth

In \in{Chapter}[one] we learn.

\stoptext

11.1. Dispatching by an identifier prefix

An older convenience recipe automatically chooses a defined reference format according to a prefix such as eq: or sec::

\def\myin[#1:#2]{%
  \expandafter\ifx\csname in#1\endcsname\relax
    \writestatus{warning}{referenceformat in#1 not defined}%
    \in[#1:#2]%
  \else
    \csname in#1\endcsname[#1:#2]%
  \fi}

With formats such as \ineq and \insec already defined, this permits:

See \myin[eq:some equation]
or \myin[sec:some section].

This is a user-defined convenience macro, not a fundamental part of the ConTeXt reference mechanism.

For most documents, explicitly named semantic formats are easier to read and maintain.

12. References to another document

ConTeXt can also use reference information produced by another document.

This is a different problem from referring to another section within the same compiled document.

The basic model is:

external document
      |
      | compile
      v
reference information
      |
      | imported with
      v
\useexternaldocument
      |
      v
logical document name
      |
      +-------------------------+
      |                         |
      v                         v
\from[document]       document::reference
                                |
                      +---------+---------+
                      |         |         |
                     \in       \at      \about

12.1. Prepare the referenced document

Suppose hasseltbook.tex contains:

\starttext

\startstandardmakeup
  \midaligned{\tfd Festivities in Hasselt}
\stopstandardmakeup

\startchapter
  [title={Euifeest},
   reference={euifeest}]

Something about the Euifeest.

\index{Euifeest}

\stopchapter

\stoptext

Compile this document first.

ConTeXt writes reference information generated during compilation to its auxiliary data, normally including the document's .tuc file.

For example:

hasseltbook.tex
       |
       | context hasseltbook.tex
       v
hasseltbook.pdf
hasseltbook.tuc

The reference metadata must be available when the referring document is compiled.

12.2. Register the external document

In the referring document:

\useexternaldocument
  [hia]
  [hasseltbook]
  [Festivities in Hasselt]

Here:

The logical name is independent of the reference identifiers inside the external document.

12.3. Refer to the document

The document itself can be referred to with:

\from[hia]

For example:

Most tourist attractions are described in \from[hia].

12.4. Refer to a target inside the external document

Use:

logical-document-name::reference

For example:

hia::euifeest

Ordinary reference commands can then query the imported target:

\about[hia::euifeest]

\at{page}[hia::euifeest]

\in{chapter}[hia::euifeest]

A complete example is:

\setupinteraction
  [state=start,
   color=green,
   style=bold]

\useexternaldocument
  [hia]
  [hasseltbook]
  [Festivities in Hasselt]

\starttext

Most tourist attractions are described in
\from[hia].

A description of
\about[hia::euifeest]
is found in
\from[hia].

The Euifeest is described on
\at{page}[hia::euifeest]
in
\from[hia].

See for more information
\in{chapter}[hia::euifeest]
in
\from[hia].

\stoptext

The important syntax is:

external-document::reference

rather than merely:

reference

12.5. Same-document and external-document references

This distinction becomes especially important in large projects.

A reference in the same assembled document may look like:

\at{page}[comp:A1]

while a target imported through an external-document name uses:

\at{page}[refB::comp:B1]

where refB has first been declared with \useexternaldocument.

Thus:

local stable identifier
       comp:A1

external document prefix
       refB

combined external reference
       refB::comp:B1

12.6. Files in other directories

The external document need not necessarily have the same base directory as the referring source.

A relative path may be used, for example:

\useexternaldocument
  [refB]
  [../volume-b/product-b]
  [Volume B]

The important practical questions are:

1. can ConTeXt find the referenced document data?
2. has the external document been compiled recently enough?
3. is its reference metadata available?
4. does the logical prefix match the one used before :: ?
5. is the external PDF available where interactive navigation expects it?

1. compile the referenced document
           |
           v
2. make its reference data available
           |
           v
3. compile the referring document
           |
           v
4. after structural changes, refresh both

12.7. Products and components

A product/component project introduces an important distinction.

Components assembled into the same product normally participate in the same document reference space. They should not automatically be treated as external documents merely because their source is stored in separate files.

By contrast, two independently compiled products may need the \useexternaldocument mechanism.

Think in terms of the compiled document rather than merely the source-file layout:

product A
   |
   +-- component A1
   +-- component A2
          |
          | ordinary product references
          v
      same reference space


product A                 product B
   |                          |
   |                          |
   +---- external reference --+
          refB::target

See also:

• Project structure

13. Troubleshooting unresolved references

An unresolved reference is usually a problem with the target, identifier, compilation state, or external-document prefix.

Check the following.

13.1. Does the target exist?

If the source says:

\in{section}[sec:method]

there must be a target named:

sec:method

13.2. Does the identifier match exactly?

Keep reference identifiers systematic and avoid accidental changes in capitalization or spelling.

13.3. Are you asking for the right property?

Remember:

\in      structural number/value
\at      page
\about   associated text/title

13.4. Is interaction relevant to the problem?

A missing link and an unresolved reference are not necessarily the same problem.

First determine whether the reference itself resolves.

Then check:

\setupinteraction
  [state=start]

if interactive PDF navigation is required.

13.5. Is the target in another document?

For an imported document, check both parts:

document::reference

For example:

hia::euifeest

13.6. Has the external document been compiled?

An external PDF alone should not be treated as a substitute for ConTeXt's reference metadata.

Compile the referenced source and make its generated reference information available to the referring document.

13.7. Use visual debugging

For complicated cases, see:

• References — Visual debugging

14. Related reference mechanisms

14.1. URLs and external resources

A URL is not the same thing as a named structural reference inside a ConTeXt document.

For web addresses, mail links, and related mechanisms, see:

• URLs and external links

14.2. Bibliographic citations

A bibliographic citation also refers to something by a stable key, but it belongs to the bibliography system rather than the structural reference system described on this page.

For example:

\cite[authoryear][beiser1987]

points to a bibliographic record, whereas:

\in{section}[sec:references]

points to a document object.

The conceptual resemblance is useful:

stable identifier
       |
       v
known target
       |
       v
chosen representation

but the mechanisms are different.

See:

• Bibliography and citations

native ConTeXt reference
        !=
bibliographic citation
        !=
third-party crossref module
        !=
bibliographic crossref data

14.3. Cross Referencing module

The third-party crossref module provides a specialized \crossref presentation interface.

It is not required for ordinary ConTeXt references.

See:

• Cross Referencing module

14.4. Paragraph referencing

The third-party pararef module provides specialized paragraph-level referencing.

See:

• Paragraph referencing

15. Command reference

For exact syntax and parameter descriptions, use the command reference pages.

15.1. Creating reference targets

• \reference
• \pagereference
• \textreference
• \contentreference

15.2. Using references

• \in
• \at
• \about

15.3. Formatting references

• \definereferenceformat
• \setupreferencestructureprefix
• \definestructureseparatorset

15.4. Interaction

• \setupinteraction

16. Mental map

The native reference system can be summarized as follows:

                         ConTeXt / LMTX
                              |
                              v
                    document structure
                              |
             +----------------+----------------+
             |                                 |
             v                                 v
    structural target                  explicit target
 chapter / section / figure          \pagereference
 table / formula / note              \textreference
             |                        \reference
             |                        \contentreference
             +---------------+-----------------+
                             |
                             v
                     stable identifier
                      sec:introduction
                             |
              +--------------+--------------+
              |              |              |
              v              v              v
             \in            \at           \about
              |              |              |
              v              v              v
       number / value       page        title / text
              \              |              /
               +-------------+-------------+
                             |
                             v
                    optional interaction
                 \setupinteraction[state=start]
                             |
                             v
                     PDF navigation


                    another document
                           |
                           v
                 \useexternaldocument
                           |
                           v
                    logical prefix
                           |
                           v
                document::reference
                           |
                +----------+----------+
                |          |          |
               \in        \at       \about

The most useful distinctions to remember are:

17. Where to go next

The reference system covers several levels of complexity.

For ordinary documents:

start here
    |
    v
create a stable target
    |
    v
use \in / \at / \about
    |
    v
enable interaction if needed

For repeated typographic conventions:

reference target
      |
      v
\definereferenceformat
      |
      v
semantic reference command

For large multifile projects:

same compiled product?
      |
   +--+--+
   |     |
  yes    no
   |     |
   v     v
normal   \useexternaldocument
reference       |
                v
        document::reference

For exact command syntax, continue with the command reference pages rather than treating this orientation page as an exhaustive command manual.

18. Related pages

18.1. References and interaction

• References, notes and floats
• References — Visual debugging
• URLs and external links
• Project structure
• Access to head numbers

18.2. Bibliography

• Bibliography and citations

18.3. Specialized modules

• Cross Referencing module
• Paragraph referencing

18.4. Command reference

• \reference
• \pagereference
• \textreference
• \contentreference
• \in
• \at
• \about
• \definereferenceformat
• \setupreferencestructureprefix
• \definestructureseparatorset
• \setupinteraction
