Mathematics/Stackers

\mathover , \mathunder and \definemathstackers

ConTeXt has a nice structure called mathstackers in order to define new math commands in which some characters are stacked over another one. For more information refer to math-stc.mkiv.

The two command \mathover[symbol]{}{} and \mathunder[symbol]{}{} are built and can be used directly.

• \framed[frame=off]{%
  $\mathover[symbol]{"2217}{A}$,   % 2217 is unicode for asterisk
  $\mathover[symbol]{"2218}{A}$,   % 2218 is unicode for circle
  $\mathover[symbol]{"2219}{A}$,   % 2219 is unicode for bullet
  $\mathunder[symbol]{"2217}{A}$,
  $\mathunder[symbol]{"2218}{A}$,
  $\mathunder[symbol]{"2219}{A}$.}


•

However one may define one's own commands. A typical example is when you want to put a small circle on top of a letter (as one would when defining the topological interior of a set…).

To do so, with \definemathstackers we define first a new stacker named here MySymbol.

Then, invoking that with \definemathover we define two new commands which can be used in math mode

• \interior
• \mystarred

• \setuppapersize[A7,landscape]
  \definemathstackers[MySymbol]
    [voffset=-.3\mathexheight,
     hoffset=\zeropoint,
     mathclass=ord,
     topoffset=.4\mathemwidth,      % poor man's italic correction
     middlecommand=\mathematics]

  \definemathover [MySymbol] [interior]  ["2218] % this a small circle
  \definemathover [MySymbol] [mystarred] ["2217] % this is an asterisk

  \starttext

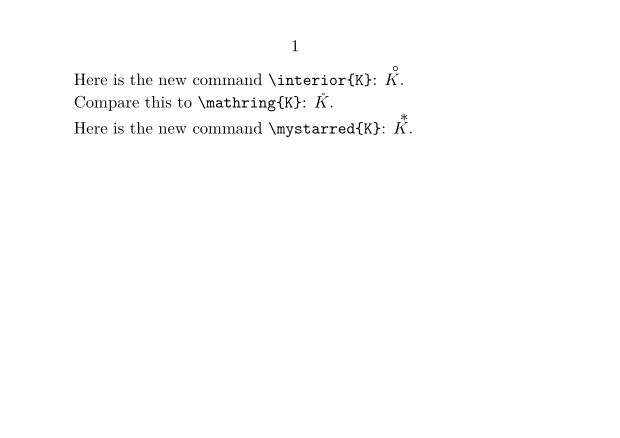

  Here is the new command \type{\interior{K}}: $\interior{K}$.

  Compare this to \type{\mathring{K}}: $\mathring{K}$.

  Here is the new command \type{\mystarred{K}}: $\mystarred{K}$.
  \stoptext


•

Overbraces and underbraces

In math mode, you can put a brace over or under an expression this way:

• \startformula
  a + \overbrace{b + c} + \underbrace{d + e} + \doublebrace{f + g} + h
  \stopformula


•

The same goes for brackets (or other stackers):

• \startformula
  a + \overbracket{b + c} + \underbracket{d + e} + \doublebracket{f + g} + h
  \stopformula


•

Adjusting stackers

You can adjust where the stackers start and end with the lt (left-top), rt (right-top), lb (left-bottom) and rb (right-bottom) parameters. This feature was introduced in beta 2019-10-28.

• $a + \overbrace  [lt=1em]         {b+c+d} + e$\blank
  $a + \underbrace [lt=1em]         {b+c+d} + e$\blank
  $a + \overbrace  [rb=1em]         {b+c+d} + e$\blank
  $a + \underbrace [rb=1em]         {b+c+d} + e$\blank
  $a + \overbrace  [lt=1em,rb=1em]  {b+c+d} + e$\blank
  $a + \underbrace [lt=1em,rb=1em]  {b+c+d} + e$\blank


•

Interleaved braces

Some terms of an expressions can be shared by both braces, tuning the lt, rt, lb and rb parameters:

• $a + \doublebrace[lt=1.4em,rt=-.3em]                   {b+c+d} + e$\blank
  $a + \doublebrace[rb=1em]                              {b+c+d} + e$\blank
  $a + \doublebrace[lt=1.4em,rt=-.3em,lb=-.3em,rb=1.5em] {b+c+d} + e$\blank
  $a + \doublebrace[lt=-1.6em,rb=-1.4em]                 {b+c+d} + e$\blank


•

See also

• Chapter "1. Math stackers" in the About manual .
• Section "1.8 Accents" in the Still manual .
• Section "10.6 Fancy fences" in the Math-MkIV manual .
