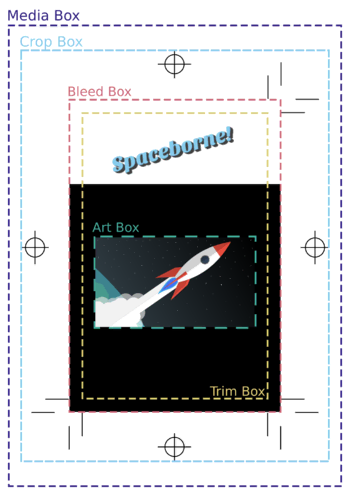

While PostScript (and EPS, that is) knows only one kind of page size, defined by the BoundingBox (or HiResBoundingBox), the size of PDF pages can have different meanings – e.g. the visible page, the printed page, the cropped printed page. Therefore the PDF standard defines a set of "boxes":

Name	Meaning
MediaBox	Size of the physical medium (print sheet); this is the page format.
CropBox	Page size that is visible in a viewer.
BleedBox	Page size plus bleed (cut space); defines the trimmed page plus the bleed.
TrimBox	Size of trimmed (cut) page, “final” page size; the net result document format.
ArtBox	Size of the page content (artwork); might be used for imposition purposes; typically, it can be used to specify any section of the page.

In PDF/X, if ArtBox is defined at all, it must not differ from TrimBox.

In ConTeXt

\setuppapersize[A5][A5,oversized]

\setuplayout
 [location=middle,
  cropoffset=0mm,% default
  trimoffset=-7.5mm,% negative offset from MediaBox to TrimBox
  bleedoffset=3mm,% bleed size
]
\setupinteractionscreen[width=max,height=max]

\starttext
\showlayout
\stoptext

• Unfortunately, the offsets are not independent: If you define a cropoffset , you must add its value to the negative trimoffset .
• It doesn’t work without \setupinteractionscreen .
• cropoffset=auto only works with location=middle (message otherwise).
• You can’t set ArtBox, since nobody seems to need it. ( \externalfigure understands size=art if you need to place a PDF image by its ArtBox.)
• \setupbackend is not significant for the box calculations.
• \setupbleeding affects only image placement, but not the BleedBox, see the Template:manual manual.
• MediaBox (i.e. the size of the sheet) is taken from the second parameter of \setuppapersize .
• trimoffset specifies the difference between the CropBox and the TrimBox. This parameter seems to be completely ignored, if it is positive.
• bleedoffset defines the difference between the TrimBox and the BleedBox. Negative values yield a BleedBox that’s smaller than the TrimBox, which is against the specs. Values bigger than the (positive) trimoffset also make no sense.

Complete Example

This uses a print mode:

\setuppapersize[A5][A5,oversized] % oversized adds 15mm, enough for the crop marks

\setuplayout[
  location=middle,
  marking=on,
]

\startmode[print]
\setuplayout[
  cropoffset=0mm,% default
  bleedoffset=3mm,% bleed
  trimoffset=-7.5mm,% half of negative size difference of sheet and paper
]
\stopmode

\startnotmode[print]
\setuplayout[
  cropoffset=7.5mm,% shrink the visible page to the final paper size
  bleedoffset=3mm,
  trimoffset=0mm,% the TrimBox is influenced by the CropBox
]
\stopnotmode

\setupinteractionscreen[width=max,height=max]% activate!

\starttext
\showlayout
\stoptext
