Input and compilation/Languages/Right-to-left RTL

Some writing systems are normally typeset from right to left. Arabic, Hebrew, Persian, and Urdu are familiar examples.

A right-to-left document may also contain material that follows a left-to-right direction, such as:

• numbers;
• Latin names;
• quotations;
• mathematical expressions;
• URLs;
• bibliographical references;
• abbreviations and technical terms.

This page is a specialized how-to guide for right-to-left (RTL) and bidirectional (BiDi) typesetting in ConTeXt.

For the general distinction between language, script, font, shaping, and writing direction, see Languages.

For documents that simply combine several languages or scripts, see Mixed languages.

For language- and script-specific information about Arabic and Hebrew, see Arabic and Hebrew.

RTL
 |
 +-- establishes a right-to-left writing direction


BiDi
 |
 +-- resolves the interaction between
     right-to-left and left-to-right material

1. Set right-to-left direction

Use \setupalign with r2l to establish a right-to-left direction:

• \definedfont[dejavusans*arabic]

  \setupalign[r2l]

  \starttext

  این نمونه ساده از یک متن فارسی است.

  \stoptext


•

The direction of the text is a separate question from the language itself and from the font used to display the script.

Conceptually:

language
   ≠
script
   ≠
font
   ≠
writing direction

For a general explanation of these layers, see Languages: Language, script, and font are different.

2. Enable bidirectional processing

A right-to-left paragraph often contains elements that follow another direction.

Numbers provide a simple example. Persian or Arabic prose is normally RTL, while numbers are normally treated as LTR elements.

The former version of this page used \setupdirections together with \setupalign:

• \definedfont[dejavusans*arabic]

  \setupdirections
    [bidi=global,
     method=one]

  \setupalign[r2l]

  \starttext

  این متن فارسی با عدد 1000 و نام ConTeXt نوشته شده است.

  \stoptext


•

This example illustrates the division of labour:

\setupalign[r2l]
       |
       +-- principal writing direction


\setupdirections[...]
       |
       +-- interaction between directional runs

3. Insert text in the opposite direction

A mainly RTL document often needs a short LTR fragment or an entire LTR paragraph.

The reverse situation also occurs: an LTR document may contain RTL material.

Direction changes should normally be limited to the material that requires them.

3.1 Define a local LTR environment

The former page used the following convenient definition:

\definestartstop
  [LTR]
  [before={\begingroup\lefttoright},
   after=\endgroup]

It can then be used as a start/stop environment:

\startLTR

This is a left-to-right paragraph inside
a mainly right-to-left document.

\stopLTR

Keeping the change inside a group prevents it from affecting the following text.

3.2 Short fragments and whole paragraphs

It is useful to distinguish:

short embedded fragment
        |
        +-- local direction change


whole paragraph
        |
        +-- grouped paragraph direction


whole document
        |
        +-- document-level direction setup

Do not change the direction of the whole document merely to typeset one embedded expression.

4. Language, shaping, font, and direction

Right-to-left typesetting involves several independent layers.

For Arabic-script languages, for example:

LANGUAGE
   |
   +-- Arabic
   +-- Persian
   +-- Urdu
   +-- ...


SCRIPT
   |
   +-- Arabic script


FONT
   |
   +-- glyph coverage


SHAPING
   |
   +-- contextual forms
   +-- ligatures
   +-- mark positioning


DIRECTION
   |
   +-- RTL


BIDI
   |
   +-- interaction with LTR material

Changing only one of these layers cannot solve problems belonging to another.

For font discovery and fallback configuration, see:

• Fonts ;
• Use the fonts you want .

For language-specific information, see Arabic and Hebrew.

5. Numbers in RTL documents

Arabic, Persian, and Urdu documents may use digit forms different from those normally used in Latin-script documents.

The former page distinguishes decimal conversion methods such as:

persiandecimals
arabicdecimals

from conversions named:

persiannumerals
arabicnumerals

The exact conversion required depends on the document element being configured.

5.1 Page numbers

For example, the former page used:

\setuppagenumber
  [numberconversion=persiandecimals]

The important principle is that digit conversion and writing direction are separate:

page direction
      ≠
number conversion

5.2 Numbers inside mathematics

Mathematical material introduces an additional difficulty because digit selection belongs to the math font setup.

The former page used font fallbacks to substitute Persian or Arabic digit forms inside mathematics.

That mechanism is useful but more specialized than ordinary RTL typesetting, and should be tested with the actual math font used by the document.

6. Structural elements in RTL documents

Once basic RTL and BiDi behaviour works, document structures can be tested one by one.

Typical structures requiring attention include:

• footnotes;
• headings;
• lists;
• enumerations;
• columns;
• tables;
• framed material.

Do not add all of these structures before a minimal RTL/BiDi example is known to work.

6.1 Footnotes

Footnotes in a bidirectional document may themselves contain mixed directions.

Two issues are especially relevant:

• the note text may need BiDi processing;
• the footnote rule and note placement may need to follow the paragraph

 direction.

The former page used a setup of this form:

\setupfootnotes
  [rule=paragraph]

\startsetups[bidi:footnotes]
  \setupdirections[bidi=on]
\stopsetups

\setupnotes
  [footnote]
  [setups=bidi:footnotes]

For Persian decimal note numbers it also used:

\setupnotation
  [footnote]
  [numberconversion=persiandecimals]

These settings should be understood as additions to the general footnote mechanism.

For the general configuration, placement, and formatting of notes, see Footnotes.

This page discusses only the additional problems introduced by RTL and BiDi.

6.2 Headings and section numbers

Section headings may combine:

• an RTL title;
• a section number;
• table-of-contents entries;
• converted digits.

The former page used:

\setuphead
  [part,chapter,section]
  [conversion=LTRpersiandecimals,
   numberstyle=\righttoleft]

This recipe is retained as material for current LMTX testing.

When debugging a heading, test separately:

title direction
      |
section-number conversion
      |
number direction
      |
table-of-contents entry

6.3 Itemizations

Numbered itemizations can use an appropriate number conversion:

\startitemize[persiandecimals]

\item First
\item Second

\stopitemize

For multi-column itemizations, the order of the columns may also need to be reversed:

\startitemize
  [columns,two]
  [direction=reverse]

\item First
\item Second
\item Third
\item Fourth

\stopitemize

The former page also gives a global setup:

\setupmixedcolumns
  [itemgroupcolumns]
  [direction=reverse]

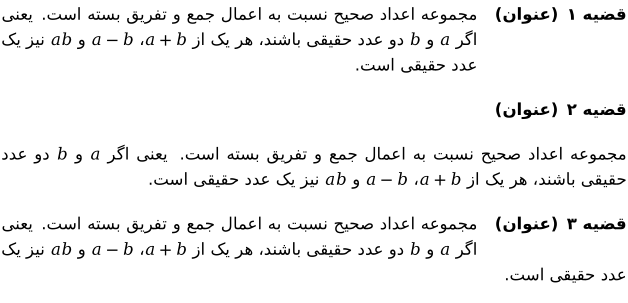

6.4 Enumerations and descriptions

Enumerations introduce another distinction:

direction of surrounding text
        ≠
alignment of the enumeration heading
        ≠
location of the heading

The older page used headalign=r2l together with an RTL surrounding paragraph.

For example:

\defineenumeration
  [theorem]
  [headalign=r2l,
   alternative=text,
   text=قضیه,
   numberconversion=persiandecimals,
   title=yes]

The available enumeration alternatives should be checked with current LMTX before documenting detailed layout recommendations.

6.5 Columns

Columns in an RTL document may need to be ordered from right to left.

The former page used:

\startcolumns
  [n=2,
   direction=reverse]

...

\stopcolumns

Column order and text direction are distinct:

column progression
       ≠
paragraph direction

An older warning on this page reported incorrect section numbering inside RTL columns. That behaviour should be retested with current LMTX before the warning is retained.

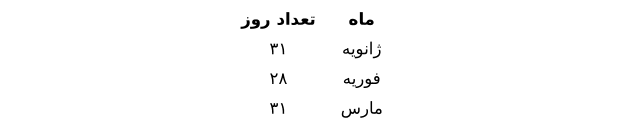

6.6 Tables

Tables contain several independent directional decisions:

order of columns
      ≠
alignment inside cells
      ≠
direction of text inside cells

For the general ConTeXt table mechanisms, see Tables.

For RTL work, Natural Tables are particularly useful because column order can be controlled explicitly.

The former page gives this example:

• \bTABLE
    [align=right,
     direction=reverse]

  \bTR
    \bTD One   \eTD
    \bTD Two   \eTD
  \eTR

  \bTR
    \bTD Three    \eTD
    \bTD Fourteen \eTD
  \eTR

  \eTABLE


•

The direction=reverse setting controls column progression.

Cell alignment remains a separate option.

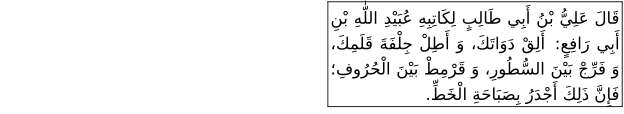

7. Framed RTL text

Short framed material can occur inside RTL prose.

The older page used:

• \definedfont[dejavusans*arabic]

  \righttoleft

  می‌توان متن را
  \inframed{درون قاب}
  گذاشت تا مهم به نظر برسد.


•

For multiline framed material, the content alignment may need to be stated explicitly:

\framed
  [width=5cm,
   align=r2l]
  { ... }

The position of the frame itself and the direction of the text inside it are again separate questions.

For general framed-text configuration, see Frames.

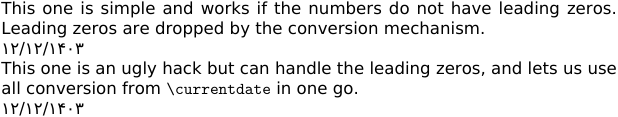

8. Dates and calendars

The standard \currentdate and \date commands support several calendar conversions.

The former page included examples for Jalali and Hebrew dates:

\currentdate[jalali:to,dd,/,mm,/,y]

\currentdate[hebrew:to,dd,/,mm,/,y]

This is a more specialized topic than basic RTL/BiDi processing.

Digit conversion, translated month names, calendar conversion, and writing direction should therefore be tested separately.

Historical versions of this page also contained Lua workarounds for Persian digit conversion in Jalali dates. Those workarounds should not be promoted to recommended examples unless they are still required by current LMTX.

9. Further example: Persian poetry

The former page also included an example using the hemistich module for classical Persian poetry:

\usemodule[hemistich]

\definedfont[dejavusans*arabic]

\setupalign[r2l]

\hemistiches
  {چه خوش گفت فردوسی پاک زاد}
  {که رحمت بر آن تربت پاک باد}

\hemistiches
  {میازار موری که دانه‌کش است}
  {که جان دارد و جان شیرین خوش است}

This is a useful example of combining RTL typesetting with a specialized literary structure.

The poetic structure itself, however, is not part of the BiDi mechanism.

10. Troubleshooting

11. A practical testing workflow

When constructing an RTL or bidirectional document, add mechanisms progressively:

choose a suitable font
        |
        v
test script shaping
        |
        v
set RTL direction
        |
        v
test a simple paragraph
        |
        v
enable / test BiDi
        |
        v
add numbers and Latin text
        |
        v
test local direction changes
        |
        v
add notes, headings, lists
        |
        v
add tables or columns
        |
        v
test the complete document

This makes it easier to identify the layer responsible for an error.

language?
script?
font?
shaping?
direction?
BiDi?
number conversion?
structure?

12. What belongs on another page?

This guide concentrates on writing direction and the interaction of different directions.

Use the related pages for the underlying or language-specific mechanisms.
