Graphics and media/Collections of tips and tricks/Fill patterns

Examples

The following are some examples to pattern fill graphic object drawn using Metapost/MetaFun.

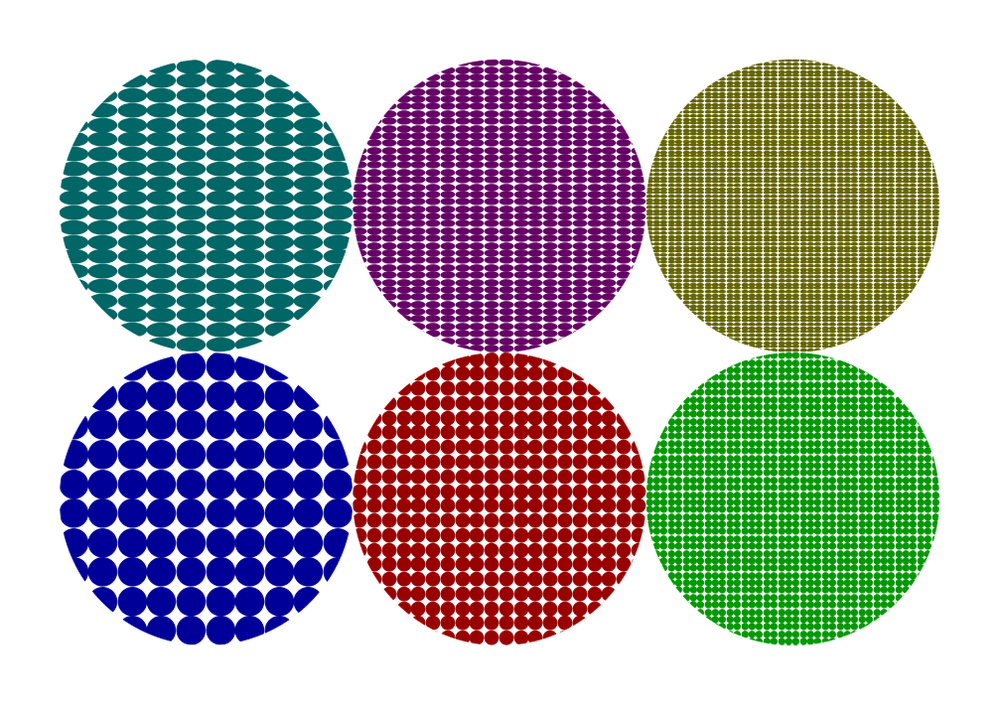

• \starttext

  \startMPpage[offset=1cm]
       draw (fullcircle scaled 5cm shifted (0cm,0cm))
           withpattern image (fill fullcircle scaled 1cm withcolor
  "darkblue" ;)
           withpatternscale (1/10,1/10)
       ;

       draw (fullcircle scaled 5cm shifted (5cm,0cm))
           withpattern image (fill fullcircle scaled 5mm withcolor
  "darkred" ;)
           withpatternscale (1/20,1/20)
       ;

       draw (fullcircle scaled 5cm shifted (10cm,0cm))
           withpattern image (fill fullcircle scaled 5mm withcolor
  "darkgreen" ;)
           withpatternscale (1/40,1/40)
       ;

       draw (fullcircle scaled 5cm shifted (0cm,5cm))
           withpattern image (fill fullcircle scaled 1cm withcolor
  "darkcyan" ;)
           withpatternscale (1/10,1/20)
       ;

       draw (fullcircle scaled 5cm shifted (5cm,5cm))
           withpattern image (fill fullcircle scaled 5mm withcolor
  "darkmagenta" ;)
           withpatternscale (1/20,1/40)
       ;

       draw (fullcircle scaled 5cm shifted (10cm,5cm))
           withpattern image (fill fullcircle scaled 5mm withcolor
  "darkyellow" ;)
           withpatternscale (1/40,1/80)
       ;
  \stopMPpage

  \startMPpage[offset=1cm]
       fill fullcircle scaled 11cm
           withcolor "darkyellow" ;

       draw fullcircle scaled 10cm
           withpattern image (fill fullcircle scaled 1cm withcolor
  "darkblue" ;)
       ;

       draw fulldiamond scaled 8cm
           withpattern image (fill fulldiamond scaled 4mm withcolor
  "darkgreen" ;)
           rotated 15
       ;

       draw fulltriangle scaled 9cm
           withpattern image (fill fulltriangle scaled 3mm withcolor
  "white" ;)
           rotated 45
       ;

       draw fullcircle scaled 10cm
           withpattern image (draw textext("!") withcolor "middlegray" ;)
           rotated 45
       ;

       draw fullcircle scaled 10cm
           withpen pencircle scaled 1mm
           withcolor "darkgray" ;
  \stopMPpage

  \startMPpage[instance=doublefun]
       fill fullcircle scaled 8cm withcolor "yellow" ;
       draw fullcircle scaled 8cm
           withpattern image (draw figure("t:/sources/cow.pdf") rotated 45;)
           withpatternscale 1/40
       ;
  \stopMPpage


  \startMPpage[instance=doublefun]
       draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-200))
           withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))) withcolor "darkgray" withopacity .5)
           withpatternscale (1,1)
       ;
       draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-200))
           withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))) withcolor "darkred" withopacity .5)
           withpatternscale (1/2,1/2)
       ;
       draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-200))
           withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))) withcolor "darkgreen" withopacity .5)
           withpatternscale (1/3,1/3)
       ;
       draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-200))
           withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))) withcolor "darkblue" withopacity .5)
           withpatternscale (1/4,1/4)
       ;
  \stopMPpage

  % \startTEXpage
       \page
       \startMPcode{doublefun}
           draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-400))
               withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))))
               withpatternscale 1/8
           ;
       \stopMPcode
       \blank
       \startMPcode{doublefun}
           draw closedcurve(unitsquare xyscaled (200,200) shifted (0,-400))
               withpattern image (fill closedcurve((fullcircle scaled 40
  shifted (25,-25))))
               withpatternfloat true
               withpatternscale 1/8
           ;
       \stopMPcode
       \page
  % \stopTEXpage

  \stoptext


•
