Summary

The command \setuptyping is used to setup verbatim text (code highlighting).

Settings

\setuptyping[...,...][...=...,...]
[...,...] name
oddmargin dimension
evenmargin dimension
margin yes no standard dimension
option mp lua xml parsed-xml nested tex context none name
style style command
color color
align see \setupalign
lines yes no normal hyphenated
space on off normal fixed stretch
keeptogether yes no
before command
after command
strip yes no number
range number name
tab yes no number
escape yes no text processor->text
indentnext yes no auto
continue yes no
start number
stop number
step number
numbering file line no
blank see \blank

Option Explanation
option
The type of colorization (syntax highlighting).
mp MetaPost
lua Lua
xml XML
tex TeX
context ConTeXt
none no highlighting
name other (self-defined)
lines
yes no hyphenation and left aligned text (align key is ignored)
no no hyphenation
hyphenated hyphenation
space
fixed Lines will not be broken, even if too long (may cause “overfull hbox” messages)
strip
yes Remove leading whitespace while keeping relative indentation between lines.
no Leave whitespace
range
Limitation of display, e.g. to hide setup code

- {2,5}: line 2 to 5 - {2,+3}: line 2 to 5

- {label:start,label:end}: from label:start to label:end (comments in code)
escape
Process macros between /BTEX and /ETEX instead of highlighting them, e.g. to add formatted text or references.
continue
see \setuplinenumbering
start
see \setuplinenumbering
stop
see \setuplinenumbering
step
see \setuplinenumbering
numbering
see \setuplinenumbering

Description

Changes options for displaying verbatim text. When called with a single argument, this command changes the options for all typing environments: \starttyping , \startTEX etc. as well as \typefile .

With the optional argument, it affects only specific typing environment (as created with \definetyping).

\setuptyping can be used multiple times to change options, and options will stay in effect until the end of file.

Examples

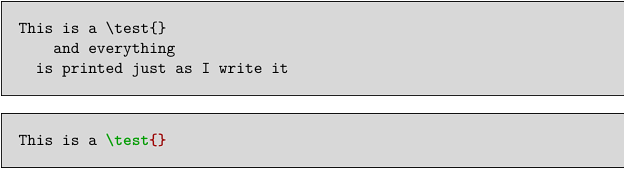

Example 1

  • \setuptyping
   [before={\startframedtext[width=\textwidth,
                             background=color,
                             backgroundcolor=lightgray]},
    after={\stopframedtext}]

\starttyping
This is a \test{}
    and everything
  is printed just as I write it
\stoptyping

\startTEX
This is a \test{}
\stopTEX
